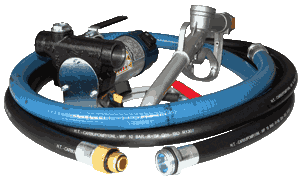

Battery Diesel Fuel Transfer Pump Kit
FLK 40 DC 12V - 24V
Battery Diesel Fuel Transfer Pump Kit with rotary electric vane pump, self-priming (max. suction height: 3 meters), integreted inox filter, lead with pincers, suction and delivery hose and automatic nozzle. The battery Diesel fuel Transfer Pump Kit is reliable, compactly and easy to install.
Suitable as mobile or fixed flying dispenser, as the primary system on earth-moving machinery, it can be used for tractors, aircraft, watercraft and agricultural machinery refueling on the field.
Technical Specifications
- Direct Current brush motor with permanent magnet
- stator, available at 12V and 24V
- Cast iron pump body finished with paint.
- Sintered steel rotor and thermoplastic resin vanes
- By-pass valve integrated on pump body
- 1” treathed connectors
- Inox filter, 100 micron
- Sealing ring ables also for low temperature
- Zinc-plated pump support brackets
- Motor protection grade: IP55
- Intermittent service: 40 minutes work cycle
- ON/OFF Switch
- Power cable (sec. 2,5 mmq, mt. 2 long), with pincers and fuse carrier
- Suction hose ø25 mm, mt. 2 long
- Supply hose ø19 mm, with connector, mt. 4 long
- Swivle connector
- Automatic nozzle
- Handle for transport
|
|
