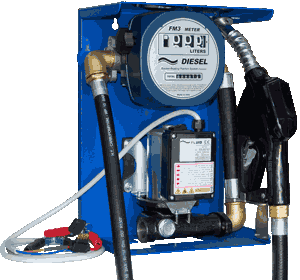

Battery Diesel Fuel Dispenser
FLP 60 DC 12V - 24V
The Battery Diesel Refueling Dispenser is equipped with vane pump DC electric motor, self-priming (max. suction height: 3 meters), inox filter integreted at the inlet,meter, hose and automatic nozzle.
The Battery diesel refueling Dispenser is
reliable, compactly, affordable and easy to install. The dispenser is made out of painted steel with high resitance and strengh, it is suitable for refueling operations on the field from tanks to agricultural machines, earth moving machines, tractors, farm machines, aircrafts, watercrafts and boats.
Fuel Dispenser Technical Specifications
- Direct Current brush motor with permanent magnet stator,
available at 12V and 24V for battery use
- Cast iron pump body finished with paint.
- Sintered steel rotor and thermoplastic resin vanes
- By-pass valve integrated on pump body
- 1” treathed connectors
- Inox filter, 100 micron
- Sealing ring ables also for low temperature
- Zinc-plated pump support brackets
- Motor protection grade: IP55
- Intermittent service: 40 minutes work cycle
- ON/OFF Switch
- Power cable (sec. 4 mmq, mt. 2 long), with pincers and fuse carrier
- Supply hose ø19 mm, with connector, mt. 4 long
- 3 digit flow meter
- Swivle connector
- Automatic nozzle
- Painted metal panel
- Nozzle holder, made in steel, with padlock facility
|
|
