Battery Diesel Fuel Distributor with Filter for Water Drops and Dirt
FLT 60 DC 12V - 24V

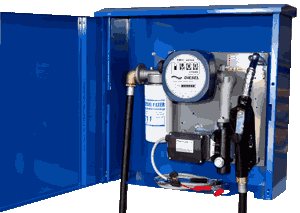

Battery Diesel fuel distributor equipped with rotary electric vane pump, self-priming (max. suction height: 3 meters), with integreted inox filter on inlet, meter, fuel filter cartridge -capable of retaining the impurities and the drops of water that may be present in the fuel pipe- and a nozzle, disposed in a coated metal cabinet, reliable, compactly and easy to install. The distributor, which is characterized by its small size and its compactness, is designed to be applied to mobile containers transported on trucks, vans and pick-up used to perform the refueling on modern tractors, agricultural machines, excavators, constructions equipments and, in general, on all the machines powered by internal combustion engines, where it is essential to safeguard the fuel injection apparatus, providing the fuel completely clean of dirt and water.
Technical Specifications
- Direct Current brush motor with permanent magnet stator, available at 12V and 24V
- Cast iron pump body finished with paint.
- Sintered steel rotor and thermoplastic resin vanes
- By-pass valve integrated on pump body
- 1” treathed connectors
Inox filter, 100 micron
- Sealing ring ables also for low temperature
- Zinc-plated pump support brackets
- Motor protection grade: IP55
- Intermittent service: 40 minutes work cycle
- ON/OFF Switch
- Power cable (sec. 4 mmq, mt. 4 long), with pincers and fuse carrier
- Supply hose ø19 mm, with connector, mt. 4 long
- 3 digit flow meter
- Filter cartdrige 70 Lt/min, 30 micron, that removes dirt and water
- Swivle connector
- Automatic nozzle
- Painted metal box with lock, extremely compact, with the possibility to dispose inside nozzle and supply hose
|
|
